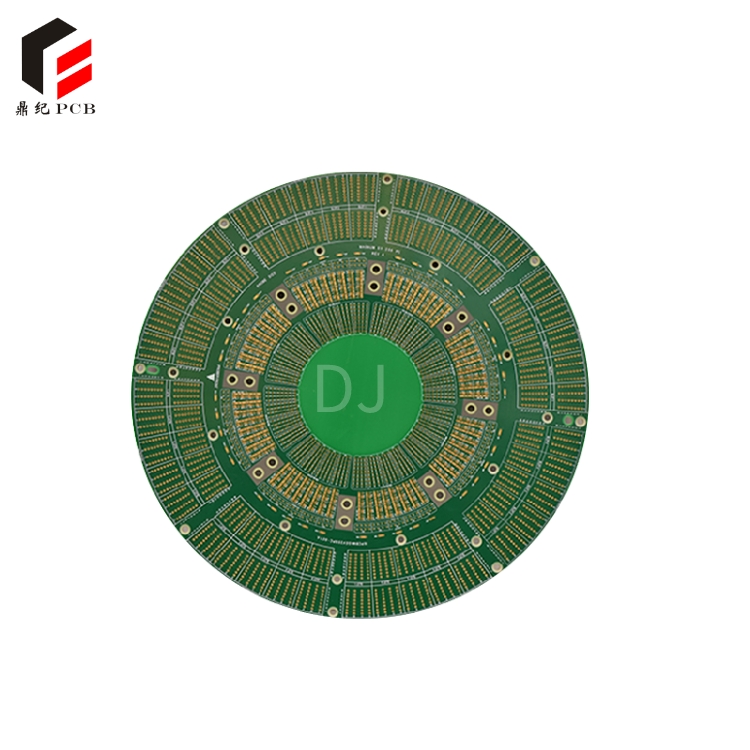

12 layer PCB circuit board

In electronic devices, PCB circuit board is an indispensable component. Among them, 12 layer PCB circuit boards are widely used in high-end electronic devices due to their high integration and high-performance characteristics. So, what are the detailed parameters of a 12 layer PCB circuit board product? This article will provide you with a detailed analysis.

产品介绍

Firstly, let's take a look at the dimensions of a 12 layer PCB circuit board. Generally speaking, the size of a 12 layer PCB circuit board can be customized according to customer needs. Common sizes include 60mm x 60mm, 80mm x 80mm, 100mm x 100mm, etc.

Next, let's take a look at the materials of the 12 layer PCB circuit board. The 12 layer PCB circuit board is mainly made of glass fiber cloth substrate (FR-4), which has good electrical and mechanical properties and can effectively resist the influence of various environmental factors.

Next, let's take a look at the number of layers in a 12 layer PCB circuit board. As its name suggests, a 12 layer PCB circuit board consists of 12 layers, including 6 signal layers, 3 ground plane layers, and 3 power plane layers. This design enables a 12 layer PCB circuit board to achieve higher signal transmission rates and lower signal losses.

Finally, let's take a look at the impedance of a 12 layer PCB circuit board. Impedance is one of the important parameters of PCB circuit boards, which directly affects the quality of signal transmission. Generally speaking, the impedance range of a 12 layer PCB circuit board is between 50 ohms and 100 ohms.

Overall, the detailed parameters of a 12 layer PCB circuit board include size, material, number of layers, and impedance. These parameters determine the performance and application areas of a 12 layer PCB circuit board. I hope that through the introduction in this article, you can have a deeper understanding of 12 layer PCB circuit boards.
