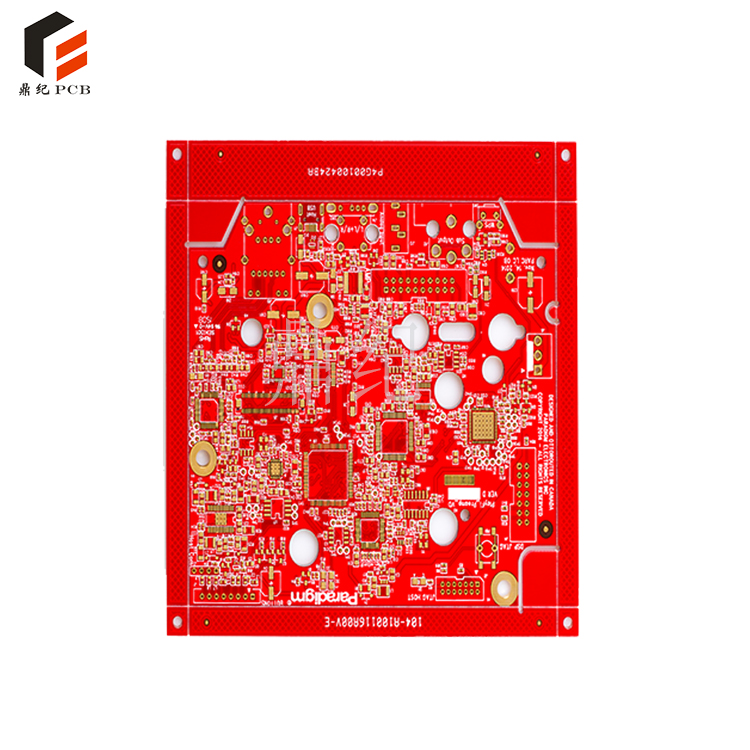

In the design of electronic devices, PCB circuit board is an indispensable component. Among them, the eight layer PCB circuit board is widely used in the design of high-end electronic products due to its higher signal transmission rate and better electromagnetic compatibility. This article will provide a detailed introduction to the customized product parameters of an eight layer PCB circuit board.
1. Size: The size of the eight layer PCB circuit board can be customized according to customer needs. Common sizes include 60mm x 60mm, 80mm x 80mm, 100mm x 100mm, etc., and can also be customized according to the actual needs of customers.
2. Material: The material of the eight layer PCB circuit board is usually FR-4 glass fiber reinforced epoxy resin, which has good electrical performance and mechanical strength. In addition, other high-performance materials such as ceramics, metal cores, etc. can also be chosen.
3. Process: The production process of an eight layer PCB circuit board mainly includes steps such as pre coating, drilling, electroplating, etching, pressing, and cutting. Through these steps, the accuracy and reliability of the circuit board can be ensured.
4. Performance: The eight layer PCB circuit board has excellent electrical and thermal performance. It has a high signal transmission rate, good electromagnetic compatibility, and strong anti-interference ability. At the same time, its excellent thermal conductivity can effectively dissipate heat and ensure the stable operation of the equipment.
5. Application areas: Eight layer PCB circuit boards are widely used in communication equipment, computer equipment, medical equipment, aerospace equipment and other fields. Its excellent performance and customized services can meet the design needs of various high-end electronic products.
In summary, the detailed parameters of customized products for eight layer PCB circuit boards include size, material, process, performance, and other aspects. By understanding these parameters, it can help you better select and use eight layer PCB circuit boards, providing strong support for your electronic product design.
