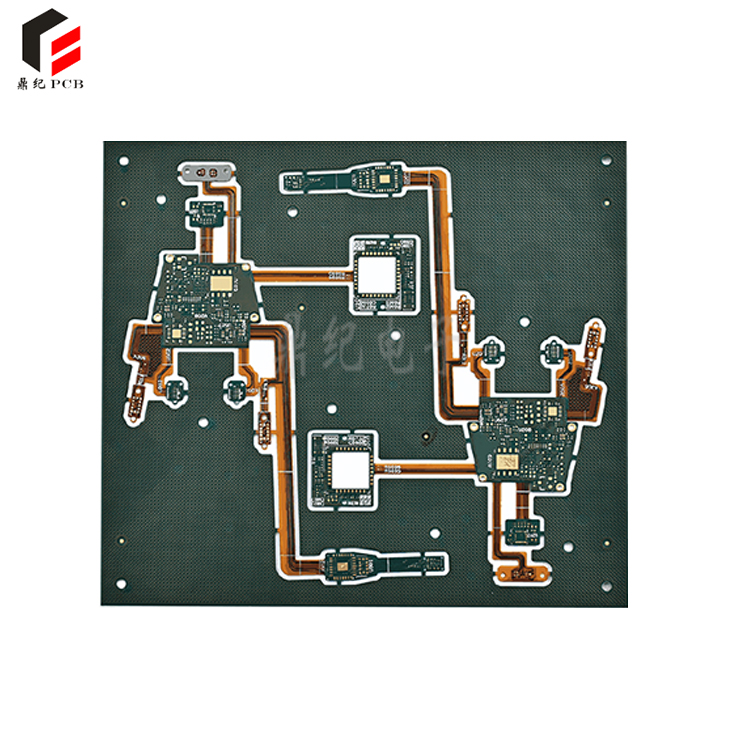

FPC soft hard combination board

FPC soft hard combination board is a new type of electronic component that tightly combines flexible circuit boards with hard circuit boards, providing higher reliability and better performance. This article will provide a detailed introduction to the parameters of the FPC soft hard bonding board.

产品详情

1. Structure: The FPC soft hard combination board is mainly composed of two parts: flexible circuit board and hard circuit board. Flexible circuit boards are usually made of materials such as polyimide or polyester film, which have good flexibility and bendability. Hard circuit boards are usually made of materials such as epoxy resin, which have high hardness and stability.

2. Performance: FPC soft hard bonding board has excellent electrical and mechanical properties. Its electrical performance includes high insulation, low dielectric constant, and good signal transmission performance. Its mechanical properties include high hardness, high wear resistance, high tensile strength, etc.

3. Application areas: FPC soft hard combination board is widely used in various electronic devices, such as smartphones, tablets, laptops, automotive electronics, medical equipment, etc.

4. Product parameters: The product parameters of FPC soft hard bonding board mainly include size, thickness, electrical performance, mechanical performance, etc. The size can be customized according to customer needs, and the thickness is usually between 0.1-0.5mm. Electrical performance includes resistance, capacitance, inductance, etc., while mechanical performance includes hardness, wear resistance, tensile strength, etc.

5. Product advantages: FPC soft hard combination board has many advantages, such as higher reliability, better performance, smaller volume, lighter weight, etc. In addition, it also has good thermal conductivity and electromagnetic shielding performance.
