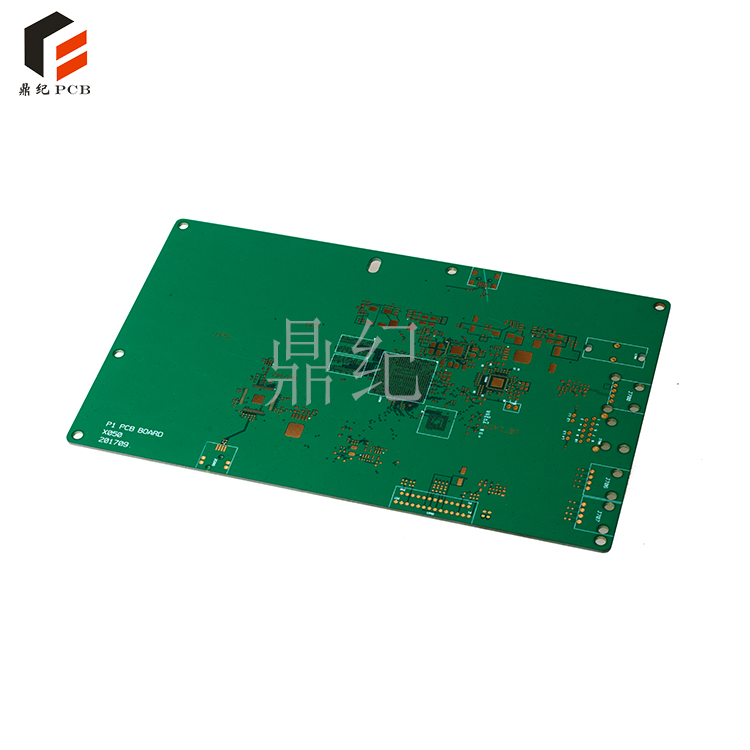

3-stage 10-layer HDI circuit board

The detailed parameters of the 3-order 10-layer PCB board, including its structure, performance, application areas, etc., help readers fully understand the characteristics and advantages of this high-end circuit board.

3-stage 10-layer HDI circuit board

Product Details

The detailed parameters of the 3rd order PCB board mainly include:



1. Material: Usually FR-4 or high-frequency materials are used, which have good electrical performance and stability.

2. Number of layers: 3 levels, each level is isolated by insulating materials.

3. Thickness: Generally the thickness is below 1.6mm .

4. Aperture: The diameter of through hole is generally above 0.2mm , and the diameter of blind hole is generally above 0.3mm .

5. Line width / line spacing: Line width / line spacing is generally less than 20um .

6. Impedance: Depending on the design requirements, the impedance can be between tens of ohms and hundreds of ohms.

7. Surface treatment: Surface treatment methods such as gold plating, silver plating, and tin spraying can be used to improve weldability and corrosion resistance.
