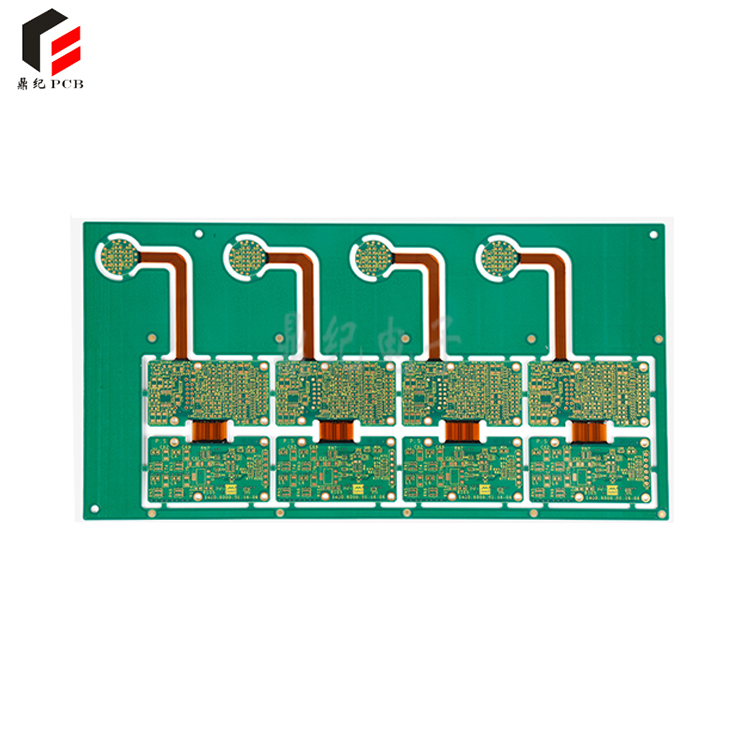

In electronic devices, a soft hard junction board is a common type of circuit board, which is formed by pressing flexible circuit boards and hard circuit boards through special processes. Among them, the eight layer soft hard composite board has been warmly welcomed by the market due to its superior performance and wide application. So, what are the product parameters of the eight layer soft hard bonding board? Next, we will provide a detailed analysis.
1. Structure: The eight layer soft hard composite board is mainly composed of eight layers of circuits, including four layers of flexible circuit boards and four layers of hard circuit boards. This structure combines the lightweight and bendable characteristics of flexible circuit boards with the high strength and heat resistance of hard circuit boards.
2. Materials: The main materials of the eight layer soft hard bonding board include polyimide (PI), epoxy resin (FR-4), etc., which have good electrical properties and thermal stability.
3. Performance: The eight layer soft hard composite board has excellent electrical performance, including low resistance, high insulation, and high signal integrity. At the same time, it also has good heat resistance, moisture resistance, corrosion resistance, and so on.
4. Application areas: Due to its excellent performance, the eight layer soft hard composite board is widely used in communication equipment, computer equipment, medical equipment, aerospace equipment and other fields.
5. Production process: The production process of the eight layer soft hard bonding board mainly includes pre coating, exposure, etching, pressing and other steps. These steps require precise control to ensure the quality and performance of the product.
6. Testing: The testing of the eight layer soft hard bonding board mainly includes electrical performance testing, thermal performance testing, mechanical performance testing, etc. These tests can ensure that the performance of the product meets the design requirements.
7. Packaging: In order to protect the product, the eight layer soft hard bonding board is usually packaged with anti-static material. At the same time, customized packaging services will be provided according to customer requirements.
