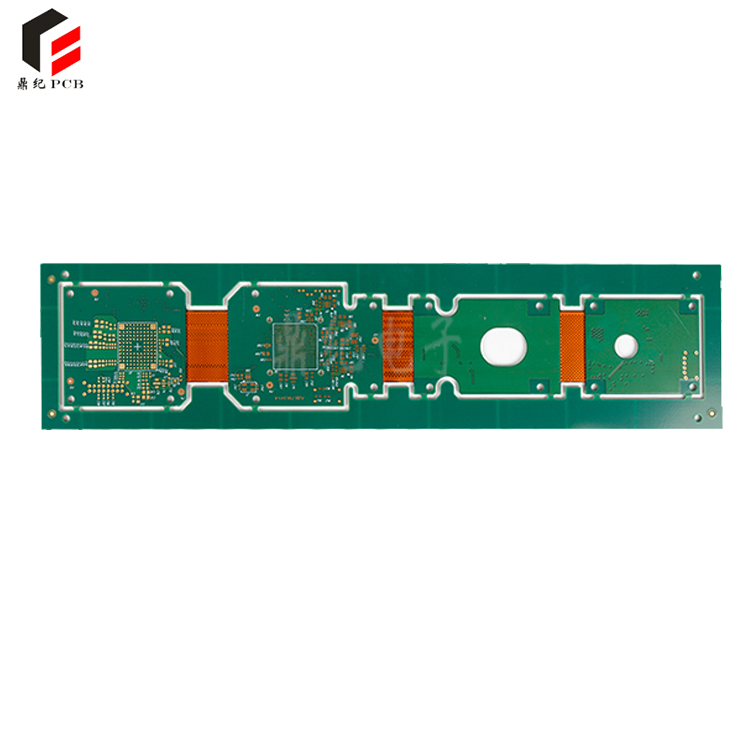

In the electronics industry, soft hard junction board is a common type of circuit board, which is composed of flexible circuit boards and rigid circuit boards that are combined through processes such as pressing. It has the compactness and reliability of rigid printed circuit boards, as well as the adaptability and bendability of soft printed circuit boards. Today, we will focus on introducing the detailed parameters of the six layer soft hard bonding board.
1. Structure: The six layer soft hard bonding board is mainly composed of six alternating layers of conductive and insulating materials, with the outermost two layers usually being solder mask and solder mask layers, used to protect the circuit board.
2. Materials: The main materials for the six layer soft hard bonding board include copper foil, fiberglass cloth, epoxy resin, etc. Among them, copper foil is the main material for the conductive layer, glass fiber cloth is the main material for the insulation layer, and epoxy resin is the adhesive that connects the layers.
3. Thickness: The thickness of the six layer soft hard bonding board is usually between 0.2-3.0mm, and the specific thickness can be customized according to customer needs.
4. Characteristics: The six layer soft hard bonding board has good electrical performance, heat resistance, and moisture resistance, as well as good mechanical strength and dimensional stability.
5. Performance: The performance of a six layer soft hard composite board mainly depends on the design and manufacturing process of its internal conductive and insulating layers. Generally speaking, the electrical performance of a six layer soft hard bonding board is superior to that of a regular four layer or two-layer soft hard bonding board.
6. Application: Due to its excellent performance, the six layer soft hard composite board is widely used in communication equipment, aerospace, medical equipment, automotive electronics and other fields.
In summary, the six layer soft hard combination board is a high-performance circuit board, and its detailed parameters can help us better understand and use this product. Whether in the design or manufacturing process, it is necessary to have a deep understanding of the parameters of the six layer soft hard bonding board to ensure the quality and performance of the product.
