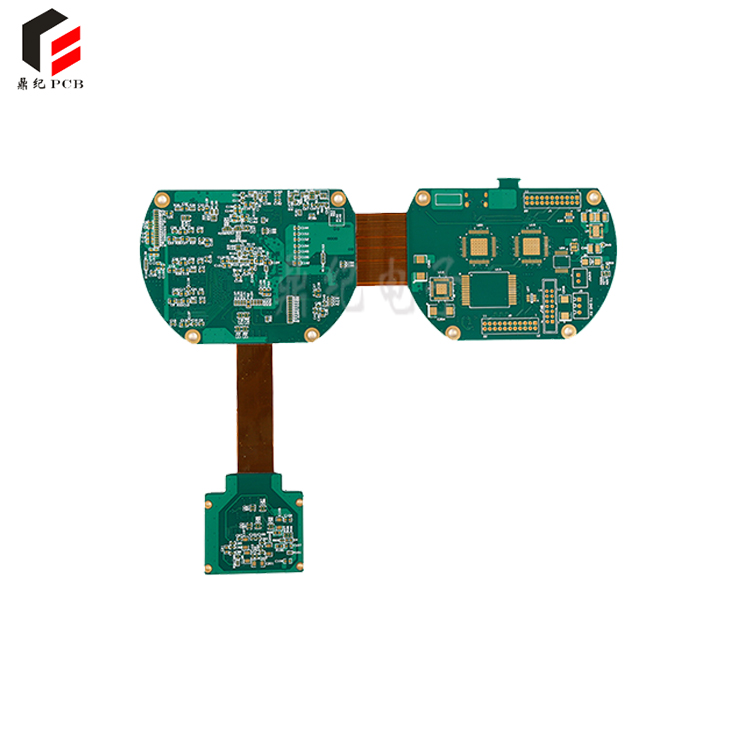

The four layer soft hard combination board is a unique circuit board that combines the advantages of both soft and hard boards, with higher performance and better reliability. The design and manufacturing process of this circuit board requires precise control and strict quality inspection to ensure its performance and reliability.
1、 Product Features
1. High frequency characteristics: The four layer soft hard composite board has excellent high-frequency characteristics, suitable for high-speed data transmission and high-frequency signal processing.
2. High reliability: Due to the presence of its hard board, the four layer soft hard bonding board has higher reliability and stability.
3. Good thermal conductivity: The design of the soft hard bonding board can effectively conduct heat and prevent circuit overheating.
2、 Product advantages
1. Space saving: The design of a four layer soft hard composite board can greatly save space, making it particularly suitable for miniaturized and high-density devices.
2. Improve performance: By optimizing the design, the four layer soft hard combination board can improve the performance and efficiency of the circuit.
3. Cost reduction: The design of a four layer soft hard bonding board can reduce production costs and improve production efficiency.
3、 Product parameters
1. Material: The four layer soft hard composite board is usually made of FR4 or other high-performance materials.
2. Thickness: The thickness of the four layer soft hard bonding plate is usually between 0.2mm and 3.0mm.
3. Operating frequency: The operating frequency of the four layer soft hard composite board can reach the GHz level.
4. Temperature range: The four layer soft hard bonding board can operate normally within the temperature range of -40 ℃ to 85 ℃.
In summary, a four layer soft hard composite board is a high-performance circuit board that has high frequency characteristics, high reliability, and good thermal conductivity. In addition, it also has the advantages of saving space, improving performance, and reducing costs. If you are looking for a high-performance circuit board, then a four layer soft hard combination board would be your ideal choice.
